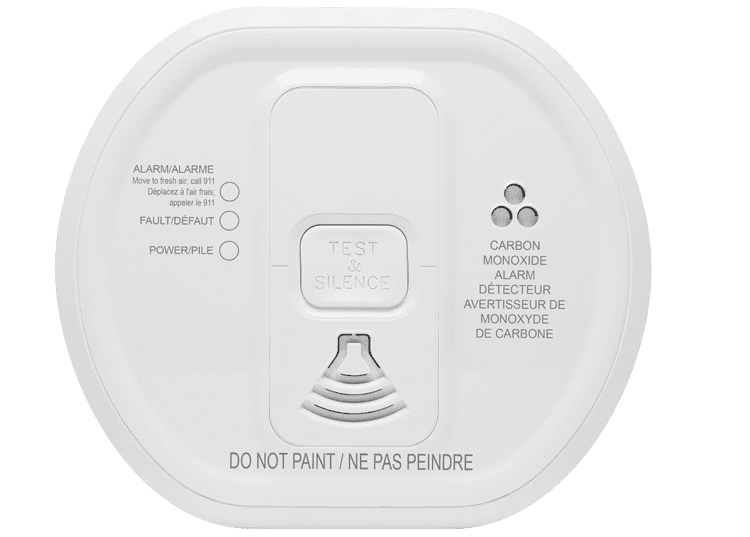

Carbon Monoxide Alarm

Why Choose This with Smart Shield Systems

• Right model, right panel: we match CO8e-345 (encrypted) to GC2e/GC3e/EDGE, or CO8-345 (classic) to legacy 345-MHz panels—then enroll and test.

• Code-aware placement: we mount near sleeping areas and fuel-burning appliances per best practices, then verify alarm reporting and monitoring.

• Lifecycle tracking: we document the detector’s 10-year sensor/battery life and schedule reminders so you’re never unprotected.

Key Features

• Enhanced security: AES-128 encrypted wireless (eSeries) helps prevent spoofing/replay.

• Loud local alert: integrated 85 dB sounder with Temporal-4 CO pattern.

• Long life design: 10-year sensor life and projected 10-year batteries (2× AAA).

• Strong RF performance: up to ~350 ft open-air range; full supervision, tamper, and low-battery reporting.

Product Specifications (At-a-Glance)

• Models: CO8e-345 (encrypted eSeries), CO8-345 (non-encrypted)

• Sensing: Electrochemical CO sensor; wireless to panel (345 MHz)

• Sounder: 85 dB @ 10 ft, Temporal-4 (T4)

• Range / Supervision: ≈350 ft open-air; ~70-min supervisory check-ins

• Power / Life: 2× AAA alkaline; ~10-year battery & sensor life

• Regulatory: UL 2075, ULC S588, CSFM listed

• Size: 4.72″ × 4.13″ × 1.77″; 32–104 °F, 15–95% RH (non-cond.)

Compatibility Notes

• Panels: CO8e-345 works with 2GIG GC2e / GC3e / EDGE; CO8-345 for classic 345-MHz 2GIG panels. We verify firmware and complete monitored testing.

Popular Use Cases

• Hallways outside bedrooms and inside sleeping areas

• Near furnaces, water heaters, attached garages (per manufacturer spacing guidelines)

Frequently Asked Questions

What makes this “enhanced security”?

The eSeries (CO8e-345) model uses AES-128 encryption so the panel can authenticate signals, reducing the risk of spoofing or interference.

How long does it last?

The sell sheet lists ~10 years for both sensor and battery life; the unit signals end-of-life when it’s time to replace.

How loud is the alarm?

It uses an 85 dB Temporal-4 tone designed specifically for CO events, and it also reports to your panel for app alerts and monitoring.

Will it reach my panel?

Open-air spec is about 350 ft; we test signal quality on site and position the detector for reliable supervision and alarm signaling.

Which panels does it support?

CO8e-345 pairs with GC2e, GC3e, and EDGE; the CO8-345 pairs with legacy 2GIG 345-MHz systems. We’ll choose and enroll the right version for your setup.

Ready for Pro-Grade CO Protection?

Smart Shield Systems will specify, install, and enroll your Carbon Monoxide Alarm with Enhanced Security, place it correctly, and set up alerts—so you’re warned fast if CO ever becomes a threat.
