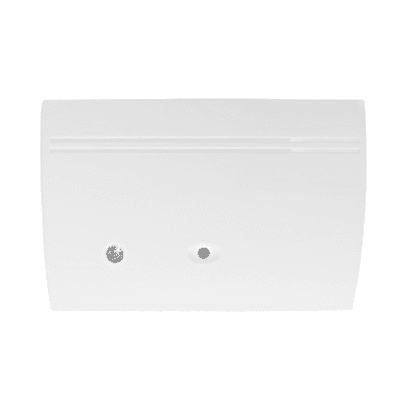

IQ Glass-S

Why Choose the IQ Glass-S with Smart Shield Systems

• Pro placement & tuning for sensitivity and coverage in each room

• Clean, wireless install—no wall fishing or new wiring

• Works with your IQ Panel and standard arming routines (Stay/Away)

• Local support from Smart Shield Systems for testing and ongoing service

Key Features

• Acoustic detection of breaking glass; effective within up to ~20 ft line-of-sight in typical rooms.

• S-Line encryption with backward compatibility for legacy 319.5 MHz systems.

• Active when armed in Stay or Away modes—no need to bypass before bed.

• Long wireless range to the panel (open-air) and supervised health checks for reliability.

• Installer-adjustable sensitivity to help reduce nuisance alarms in echo-prone rooms.

Technical Highlights (At-a-Glance)

• Model / Part #: IQ Glass-S / QS1431-840.

• Detection range: up to 20 ft (MAX setting); selectable 13 ft, 8 ft, 5 ft via DIP switches.

• Panel radio: 319.5 MHz S-Line (encrypted on compatible IQ panels).

• Wireless range to panel: up to ~600 ft (open air).

• Power: 2× CR123A 3 V lithium batteries (included).

• Operating temp: 14–122 °F (-10–50 °C); supervisory check-in ~70 min.

• Dimensions: 2.75″ H × 3.88″ W × 1.5″ D.

• Mounting guidance: keep at least 3.3 ft from protected windows and 4 ft from noise sources (place on opposite wall or ceiling when practical).

Compatibility Notes

• Works with IQ Panels using 319.5 MHz; S-Line encryption on compatible IQ models, and legacy 319.5 MHz panels supported unencrypted.

• Automatically participates in arming modes (Stay/Away) for day-to-day use.

Popular Use Cases

• Family rooms or dens with multiple windows

• Sliding glass doors and large plate-glass areas

• Basements or sunrooms with hard surfaces that carry sound

Frequently Asked Questions

Where should I install the IQ Glass-S?

Install on a wall opposite the windows being protected or on the ceiling (in rooms with windows on multiple sides). Keep it at least 3.3 ft from the glass and 4 ft from noise sources (speakers, TVs, HVAC). We’ll verify coverage during testing.

What’s the detection range?

When set to MAX, the sensor is rated for up to 20 ft line-of-sight to the glass; lower ranges (13 ft, 8 ft, 5 ft) are selectable to match the room.

Will it still work at night or in Stay mode?

Yes. The IQ Glass-S listens whenever the system is armed—including Stay—so perimeter windows can be protected while you’re home.

How far can it be from the panel?

Open-air radio range to the panel is listed up to ~600 ft; actual range depends on construction and placement. We confirm signal strength during installation.

Any tips to avoid false alarms?

We tune sensitivity using the built-in DIP switches, mount at recommended distances, and avoid noisy sources in the immediate vicinity—best practices that keep protection high and nuisance trips low.

Ready to Add Glass-Break Protection?

Smart Shield Systems will place, program, and sensitivity-tune your IQ Glass-S (QS1431-840), then test with your IQ Panel so you have reliable coverage from day one.
