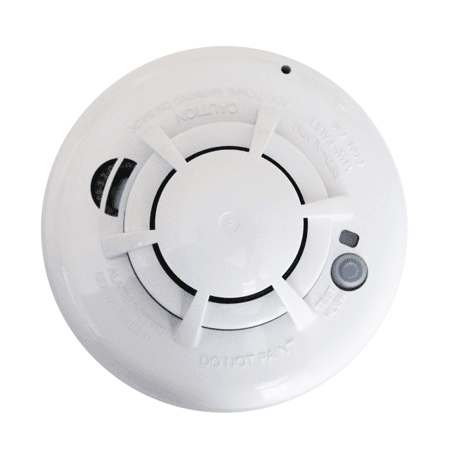

IQ Smoke

Why Choose the IQ Smoke with Smart Shield Systems

• Professionally designed coverage that follows code best practices for each floor and sleeping area

• Clean, fast installation with battery power (no wiring runs)

• Around-the-clock monitoring with mobile notifications through your IQ system

• Local experts from Smart Shield Systems for setup, testing, and ongoing support

Key Features

• Photoelectric smoke sensing that conforms to UL 217 standards.

• Integrated heat detection: high-temp alarm at 135°F and rapid rise-in-heat detection for fires that may not produce immediate smoke.

• Built-in freeze warning: sends a trouble alert around 41°F to help prevent cold-weather damage.

• Always-on protection (monitored whether the panel is armed or disarmed).

• Loud alerting & clear status: 85 dBA Temporal-3 sounder with tri-color LED and a front hush/test button for quick checks.

Technical Highlights (At-a-Glance)

• Model / Part #: IQ Smoke / QS5110-840.

• Wireless: 319.5 MHz; nominal open-air range up to 600 ft.

• Power: 3× AAA batteries (included); 3–5 year typical life.

• Audible Alarm: ≥85 dBA (ANSI Temporal-3).

• Sensitivity: 1.5–3.5 %/ft; spacing up to 70 ft (typical).

• Operating Environment: 40–100°F, 15–90% RH (non-condensing).

• Dimensions: 5.0″ diameter × 2.5″ high.

Compatibility Notes

• Works with 319.5 MHz IQ Panels and other compatible 319.5 MHz receivers (e.g., select GE/Interlogix systems). Ask us to confirm your setup.

• This device detects smoke, excessive heat, and freeze conditions. For carbon monoxide protection, add a dedicated CO detector. (We’ll help you pick the right one.)

Popular Use Cases

• Hallways outside bedrooms and on every level of the home

• Living rooms, stairways, basements (per code guidance)

• Utility rooms—pair with a CO detector where combustion appliances are present

Frequently Asked Questions

Where should the IQ Smoke be installed?

Per fire-code best practices, install smoke detectors outside sleeping areas and on every level, including basements. Avoid installing directly in kitchens or garages to reduce nuisance alarms; we’ll design placement during your site visit.

Does the IQ Smoke detect carbon monoxide?

No. The IQ Smoke is for smoke/heat/freeze. Add a dedicated CO detector for carbon monoxide. We can bundle both for full life-safety coverage.

How loud is the alarm, and can I test it?

It sounds at ≥85 dBA with the ANSI Temporal-3 pattern. Use the front hush/test button for routine testing; your panel will also supervise battery and trouble conditions.

What maintenance is required?

Vacuum or use compressed air around the detector vents periodically to remove dust; replace the AAA batteries when prompted (typically 3–5 years). We’ll show you how during installation.

Will I get phone alerts?

Yes—when paired with your monitored IQ system, you can receive mobile notifications for alarms, low battery, and freeze warnings.

Ready to Add Life-Safety Protection?

Smart Shield Systems will design, install, and monitor the IQ Smoke (QS5110-840) so your property is protected day and night—and you’re kept in the loop. Get your free quote today.
