PowerG 2-way Wireless Outdoor Magnetic Contact

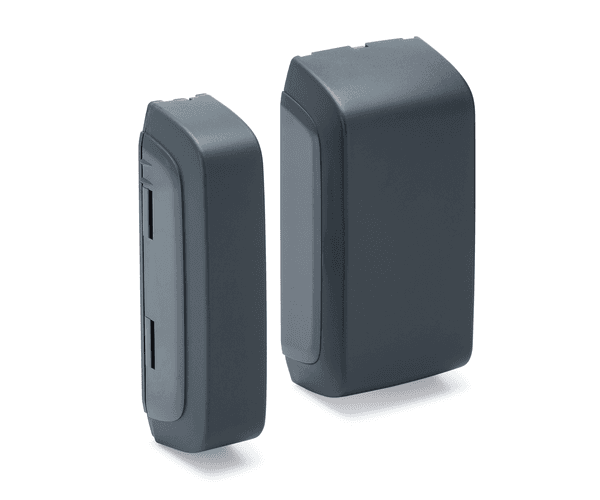

The DSC PowerG PGx312 (models: PG9312/PG8312/PG4312) is a rugged outdoor door/window contact that uses PowerG 2-way, AES-128 encrypted wireless, a wide-gap reed, and a tamper-resistant, IP66 housing. It also provides an auxiliary hardwired input so you can bring an existing contact into your wireless system. Typical battery life is up to 5 years.
Why Choose This with Smart Shield Systems
- Built for the elements: we mount and weather-seal to leverage the contact’s IP66 rating for gates, sheds, and pool enclosures.
- Flexible wiring options: we can land a nearby wired contact on the aux input to keep runs short and tidy.
- Fast, reliable setup: we use the link-quality LED and auto-enrollment pull tab to lock in a strong PowerG signal before we leave.
Key Features
- Outdoor-rated, IP66 dust-tight and waterproof enclosure.
- Auxiliary input to connect a standard hardwired contact (ideal for gates/metal frames).
- Wide-gap tolerance to reduce false alarms on windy gates and enclosures.
- PowerG wireless: two-way, frequency-hopping, AES-128 encrypted communications.
- Installer aids: link-quality LED and pull-tab auto-enrollment for quick commissioning.
- Temperature sensor (shown in the app when used with PowerSeries Pro); anti-masking support on specific systems.
Product Specifications (At-a-Glance)
- Models / Bands: PG9312 (NA 912–919 MHz), PG8312 (868 MHz), PG4312 (433 MHz).
- Ingress rating: IP66 (outdoor use).
- Battery / Life: Two 1.5 V lithium cells, up to ~5 years (typical).
- Operating range: –40 °F to 151 °F (–40 °C to 66 °C).
- Dimensions / Weight: 4.12 × 2.05 × 1.37 in (105 × 52 × 35 mm); ~5.4 oz (154 g).
- Indicators / Aids: RF link-quality LED, pull-tab auto-enrollment.
- Tamper: case (and installation guidance for back tamper where required).
Compatibility Notes
- Works with PowerSeries Neo, PowerSeries Pro, and Qolsys panels (PowerG capable).
- Temperature readout and anti-masking are system-dependent (supported on PowerSeries Pro; see data sheet).
Popular Use Cases
- Perimeter gates & fences: wide-gap reed tolerates movement; aux input brings in an existing wired loop.
- Sheds, pool & garden enclosures, exterior doors/windows.
Frequently Asked Questions
Yes—its housing is IP66 (dust-tight and water-jet resistant), suitable for outdoor environments.
Yes—the auxiliary input accepts a standard hardwired contact, useful on metal gates/frames or when reusing an existing sensor.
It uses two 1.5 V lithium batteries and is rated for up to 5 years in typical use.
PowerG-capable systems including PowerSeries Neo / Pro and Qolsys panels. Some advanced features (e.g., temperature display) require PowerSeries Pro.
Yes—pull-tab auto-enrollment and a visible RF link-quality LED help us verify a strong signal during placement.
Additional Resources
Download ManualReady to secure the outside, too?
Smart Shield Systems will mount, enroll, and test your PGx312 Outdoor Magnetic Contact, wire the aux input if needed, and tune notifications—so gates, sheds, and enclosures stay protected in all weather.
