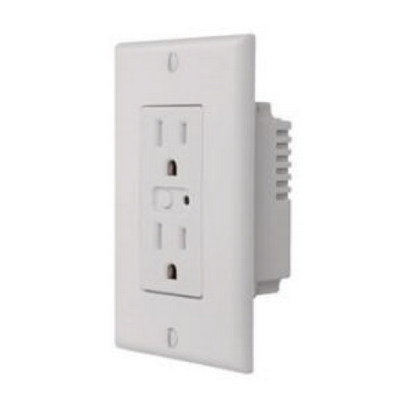

Smart In-Wall Outlets

Why Choose Smart Shield Systems

• Code-compliant installs: We replace your duplex with a TR smart receptacle and verify load ratings, wiring, and box depth.

• Platform expertise: We enroll outlets to your Alarm.com account for scenes, rules, and notifications.

• Reliable mesh: Line-powered Z-Wave devices act as repeaters to strengthen coverage.

• Modern radios: Z-Wave Plus brings better range and efficiency; many newer models add OTA updates (and some add S2/SmartStart).

Key Features

• Controlled + always-on outlets: Automate one receptacle while keeping one continuous-power outlet for chargers or appliances.

• 15A, 120 VAC; tamper-resistant shutters: Safer, code-friendly replacement for standard outlets.

• Energy monitoring on select models (e.g., GoControl WO15EMZ5-1).

• Z-Wave Plus improvements: increased range, efficiency, and OTA firmware updates.

• Repeater function: strengthens your Z-Wave mesh for other devices.

Product Specifications (At-a-Glance)

• Electrical: 120 VAC, 60 Hz, 15A receptacle; TR shutters; supports varied loads (Leviton DZR15 lists lighting loads and ½ HP motor support).

• Wireless: Z-Wave/Z-Wave Plus (908/916 MHz); many models support OTA updates; line-powered repeater behavior.

• Form factor: Standard duplex replacement; LED status/locator on many models.

• Examples we deploy: Enbrighten (Jasco) 55256 TR smart outlet; Leviton DZR15 Z-Wave TR outlet; GoControl WO15EMZ5-1 Z-Wave Plus outlet (energy monitoring).

Compatibility Notes

• Alarm.com: Smart in-wall outlets appear on Alarm.com’s compatible hardware lists and can be automated alongside your security system.

• Outlet behavior: Many SKUs control one receptacle and keep the other always on—we’ll confirm the exact model behavior on your quote.

Popular Use Cases

• Lamps & holiday lighting on sunset/sunrise schedules

• Coffee makers, air purifiers, fans on timers or scenes

• Networking gear on the always-on receptacle; automate the other

Frequently Asked Questions

Are both receptacles “smart”?

Usually one is Z-Wave controlled and one is always on (e.g., GoControl WO15EMZ5-1 controls the bottom outlet). We also carry models where both are controlled if needed.

Is the outlet tamper-resistant and code compliant?

Yes—these are TR duplex receptacles with safety shutters, designed as direct replacements for standard outlets.

Will it extend my Z-Wave network?

Yes. Because it’s line-powered, the outlet acts as a Z-Wave repeater, improving mesh reliability for nearby devices.

Can I monitor energy usage?

Select models (like WO15EMZ5-1) support energy monitoring that your hub can read. We’ll specify this if you want usage data.

What loads can I plug into it?

Typical rating is 15A, 120 VAC. For example, Leviton DZR15 supports a wide range of lighting loads and up to ½ HP motor loads—perfect for many small appliances.

Ready for Clean, App-Controlled Power?

Smart Shield Systems will specify the right Smart In-Wall Outlets, install them neatly, and set up your Alarm.com automations—so plugged-in devices work exactly the way you want.
