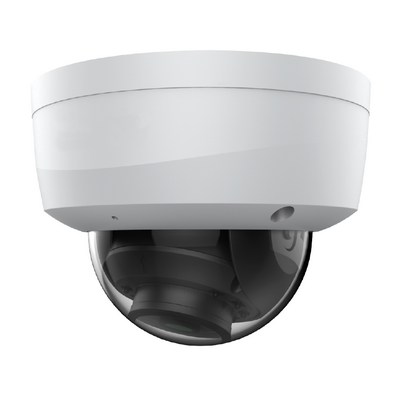

White 4/8mp Fixed IR Dome Camera

Why Choose This Dome with Smart Shield Systems

• Pro design & placement so you get the coverage and detail you need without glare or blind spots.

• Clean PoE install with neat junctions and sealed fittings for long service life.

• Image tuning (WDR, IR, bitrate) matched to your lighting and retention plan.

• Ongoing support—health checks, secure remote access, and storage planning.

Key Features

• Fixed 2.8 mm (typical) wide-angle lens; some SKUs also offer 4.0 mm.

• True WDR (≈120 dB) for bright entryways and mixed indoor/outdoor scenes.

• IR night vision typically ~30 m / 98–100 ft depending on the model.

• Efficient recording: H.265/H.265+ saves bandwidth & storage vs. H.264.

• Edge storage: microSD (commonly up to 128–256 GB, model-dependent).

• Rugged & simple: IP67 weather rating, IK10 vandal resistance, PoE (802.3af).

• Open compatibility: many models support ONVIF Profile T/S/G for broad NVR/VMS integration.

Technical Highlights (At-a-Glance)

4MP Fixed IR Dome

• Video: up to 2688×1520 @ 20–30 fps

• Lens: 2.8 mm fixed (wide coverage)

• WDR/Codec: True WDR 120 dB, H.265/H.265+

• IR: up to ~30 m (98 ft)

• I/O: PoE, microSD up to 256 GB, IP67, IK10

8MP (4K) Fixed IR Dome

• Video: up to 3840×2160 @ ~15–20 fps (model dependent)

• Lens: 2.8 mm fixed

• WDR/Codec: True WDR 120 dB, H.265/H.265+

• IR: ~30–40 m (98–131 ft) typical; many list ~100 ft

• I/O: PoE, microSD up to 128 GB, IP67, IK10

Compatibility Notes

• Works with most recorders that support ONVIF Profile T/S/G (Profile T covers H.264/H.265 streaming, imaging settings, and motion/tamper events). We’ll verify features with your NVR/VMS.

• PoE (802.3af) simplifies cabling—no outlet at the camera required.

Popular Use Cases

• Building entrances & lobbies (use WDR to tame backlight)

• Hallways & corridors with constant cross-traffic

• Perimeter doors & loading areas that need vandal resistance

Frequently Asked Questions

How well does it work at night?

These domes include integrated IR with rated illumination typically to ~30 m / ~100 ft. We tune Smart IR/exposure to avoid washout on close objects.

Do I need a power outlet at the camera?

No—PoE (802.3af) carries power and data over a single Ethernet cable.

Will it integrate with my existing recorder?

In most cases, yes. With ONVIF Profile T/S/G, these domes interoperate with a wide range of NVRs and VMS platforms; we’ll confirm event support (motion/analytics) for your setup.

Can it record without an NVR?

Yes—most models include a microSD slot (typically 128–256 GB depending on SKU) for edge recording; we often pair this with NVR storage for redundancy.

Ready for Pro-Grade Coverage?

Smart Shield Systems will specify the right 4MP or 8MP Fixed IR Dome, design optimal placement, and install it cleanly with PoE, tuned imaging, and secure remote access—so you get crisp video day and night.
